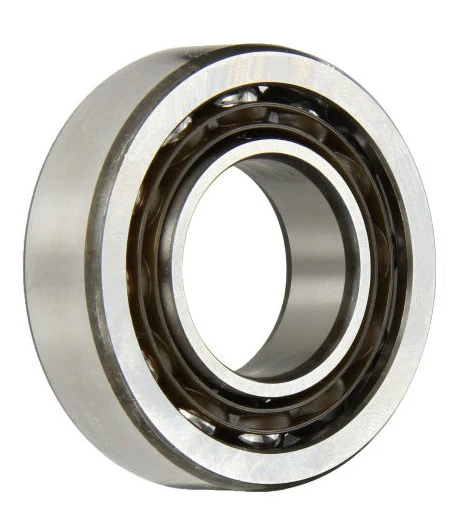

7208BEAT85SUN NSK Single Row Angular Contact Ball Bearing 40x80x18mm

Description

Angular contact ball bearings have raceways in the inner and outer rings which are displaced with respect to each other in the direction of the bearings axis. This means that they are suitable for combined loads both radial and axial. They provide a rigid bearing arrangement and accommodate tilting moments well.

40 Degree Contact Angle

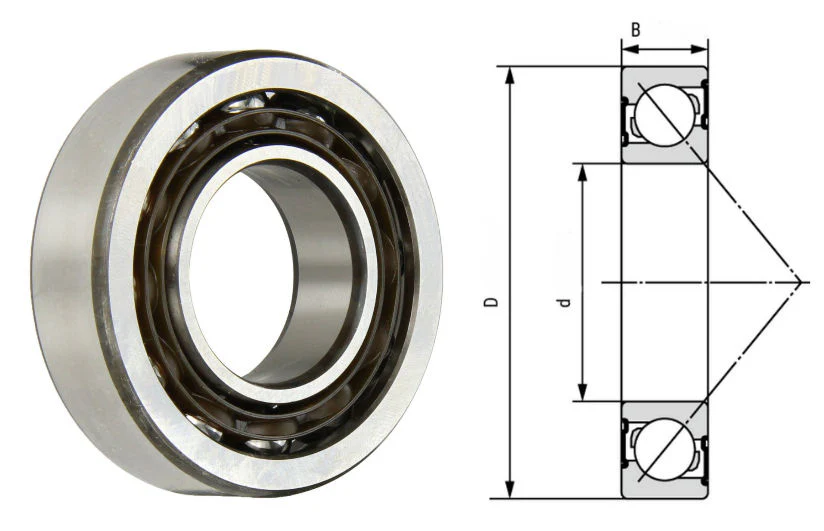

Dimensions

d: 40mm

D: 80mm

B: 18mm

Load Ratings

Dynamic: 35.5kN

Static: 23.0kN

Speed Limits

Grease: 7300 r/min

Oil: 9900 r/min

Weight: 350g
